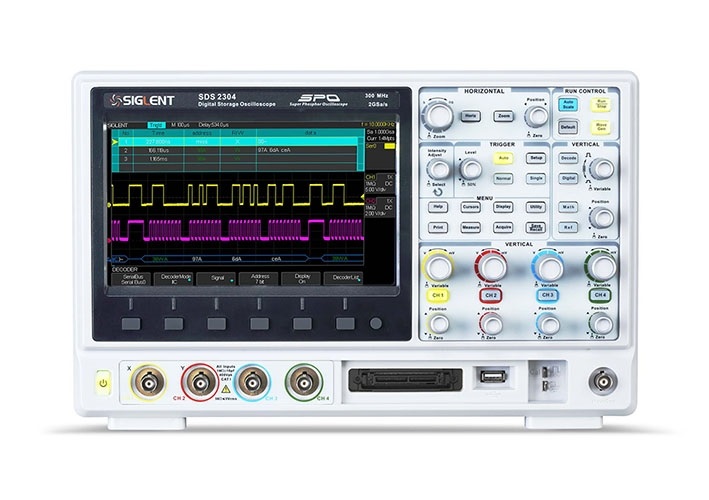

Osciloskop Siglent SDS2304 4x300Mhz

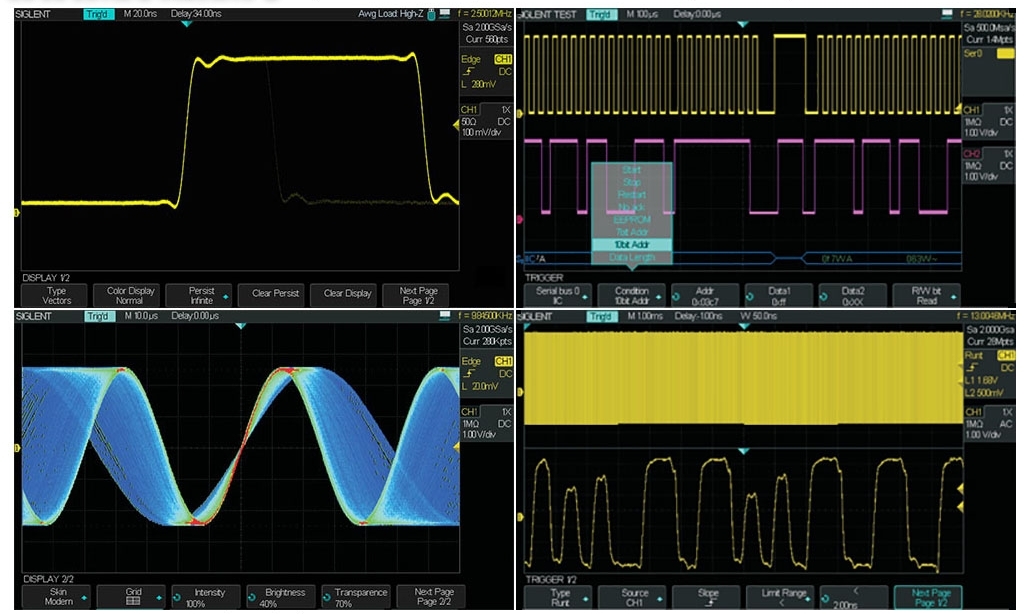

SiglentSDS2304Oscilloscope 300MHz 4 channel The Siglent SDS2304 is a very high quality four channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 300 MHz. The SDS2000 Series Oscilloscopes use an advanced technology and are high performance digital oscilloscopes to meet customer’s applications with its innovative SPO technology, powerful ditigal trigger function, serial decode function and logic analyzer. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The SDS2304 has a refresh rate of up to 110.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display. Model types: Model SDS2072/SDS2074 SDS2102/SDS2104 SDS2202/SDS2204 SDS2302/SDS2304 Bandwidth 70MHz 100MHz 200MHz 300MHz Rise time &lt|5.0ns &lt|3.5ns &lt|1.7ns &lt|1.2ns Channels 2/4 Coupling AC,DC,GND Impedance (1M&#937|±2%)||(23pF±4pF) 50&#937|:50&#937|±2% Max.Input voltage 400Vrms,CAT I,10X,1M&#937| CH to CH Isolation &gt|100:1 Probe attenuator 1X,10X,50X,100X,500X,1000X Vertical Resolution 8 bit Vertical Scale 2 mV/div ~ 10 V/div Offset Range 2 mV ~ 100mV: ± 1V 1.02 mV ~ 1V: ± 10V 1.02 V ~ 10V: ± 100V Hardware Bandwidth Limits 20MHz±40% Bandwidth Flatness DC ~ 10% of BW: ± 1dB 10% ~ 50% of BW: ± 2dB 50% ~ 100% of BW: + 2dB/-3dB Low Frequency Response (AC -3dB) &#8804|10Hz Overshoot &lt|10% Channel Skew &lt|200ps Math Funtion +,-,*,/,FFT,d/dt,&#8747|dt,&#8730| FFT Window:Rectangular,Blackman,Hanning,Hamming Sample points:1024 Time base Scale 1.0ns/div~50s/div Waveform Capture 110,000 wfm/s Intensity Grading 256 Levels Display Format Y-T Zoom,Roll,X-Y Time base Accuracy ±25ppm Roll Mode 100ms/div~50s/div(1-2-5 step) Trigger Mode Auto,Normal,Single Trigger Type Edge, Pulse, Video, Slope, Window, Interval, Dropout, Runt, Pattern, I2C, UART/RS232, CAN, LIN Trigger Level Internal:±4.5 div from the center of the screen Trigger Range EXT:±1.2V| EXT/5:±6V Holdoff Range 100ns~1.5s Trigger Accuracy ±0.2div Trigger Jitter &lt|200ps Serial Decode I2C, UART/RS232, CAN, LIN Auto Measurement (32 Types) Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Crms,Vrms, ROV, FOV,RPRE, FPRE, Rise time, Fall time, Freq,Period, +Wid, -Wid, +Dut, -Dut, BWid, Phase, FRR,FRF, FFR, FFF, LRR, LRF, LFR, LFF Cousor measure Time (X1, X2), (X1 X2) Voltage(Y1, Y2), (Y1 Y2) Statistics Current, Mean, Min, Max, Std-Dev, Count Sample Mode Real Time Sample Sample Rate 2GSa/s Memory Depth Max.28Mpts, available Acquisition Sample, Peak Detect, Average, High Res Averages 4, 16, 32, 64, 128, 256, 512, 1024 Waveform Generator(optional) Channels 1 Max.Frequency 25MHz Sample Rate 125MSa/s Arb waveform length 16 kpts Frequency Resolution 1&#956|Hz Vertical Resolution 14 bits Sine Wave 1&#956|Hz ~ 25MHz Square/Pulse Wave 1&#956|Hz ~ 10MHz Ramp Wave 1&#956|Hz ~ 300kHz DC Offset ±1.5V(50&#937|) ±3.0V(High) Noise Bandwidth &gt|20MHz(-3dB) Cardiac Frequency 1&#956|Hz ~ 5MHz Gaus Pulse Frequency 1&#956|Hz ~ 5MHz Exp Rise Frequency 1&#956|Hz ~ 5MHz Exp Fall Frequency 1&#956|Hz ~ 5MHz General Specification Standard Interface USB Host, USB Device,LAN, Pass/Fail, Trigger Out Display 8.0 inch color TFT-LCD,800(Horizontal)*480(Vertical) pixel Language Chinese, English Dimensions 352mm(L)*112mm(W)*224mm(H) Weight Net 6.2kg|Shipping 8.2kg &nbsp| Accessoires included: Quickstartguide 4 x 300MHz probe 10x / 1x USB Cable 220V AC EU power cord CD inlcuding Software / manual
